AUTO-DRAFT®
RT-SERIES
CHIMNEY FANS |
With
the
Auto-Draft®
Chimney
Fan
your
hard
starting
or
back-drafting
fireplace,
stove,
BBQ,
or
heater
draws
immediately
and
perfectly
every
time.
Great
for
chimneys
that
are
too
short
or
that
face
heavy
winds.
Enjoy
fires
without
the
smoky
back
up--even
with
moist
or
hard
to
ignite
types
fuels.
Once
the
fire
is
burning,
adjust
the
variable
speed
control
knob
to
achieve
maximum
efficiency.
Great
for
noise
sensitive
installations.

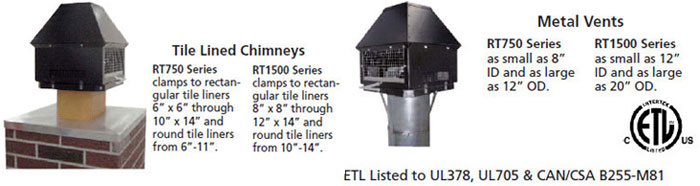

Connects
easily
with
metal
or
tile
lined
flues.
Lower
power
consumption
even
at
full
speed.
The
RT-Series
Chimney
Fans
are
the
only
fans
rated
for
1000°
F
(538°
C),
more
than
twice
the
temp
rating
of
competitors.
We
guarantee
satisfaction
with
our
(1)
Year
Unconditional
and
(2)
Year
Mechanical
Warranty.
|
Auto-Draft® Fan Features:
-

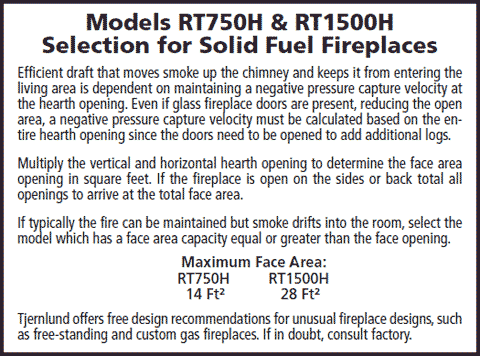

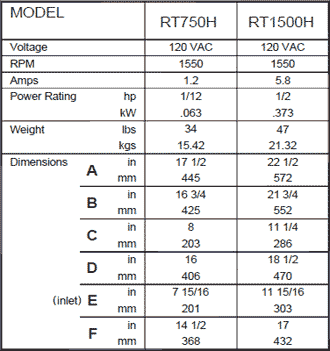

RT750H & RT1500H Include Speed control
-
PSC ball bearing motors with -40°F low temperature lubricant
-
Patented motor cooling system automatically activates, extending motor life
-

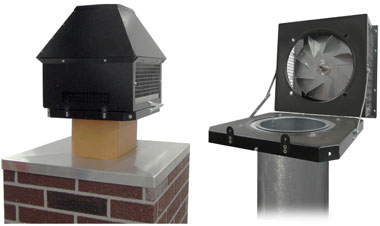

Clamshell design for easy installation, inspection and service
-
High performance backward inclined impeller repels soot
-
High temperature powder coat finish
|
Rooftop
Chimney Fan
Support Documents |
|
|
|
| AUTO-DRAFT®
MODEL AD-1 INDUCER FAN FOR WOOD OR COAL STOVES |
|
With
the
Auto-Draft
your
hard
starting
stove
draws
immediately.
No
smoky
back
up--even
with
moist
or
hard
to
ignite
types
of
wood.
Once
the
fire
is
burning,
adjust
the
variable
speed
control
knob
on
the
electrical
box
to
achieve
the
maximum
efficiency
of
your
stove.
The
Auto-Draft
provides
for
total
utilization
of
your
wood,
leaving
only
a
fine
ash
residue
in
most
cases.
Fits Most Wood or Coal Burning Stoves
The Auto-Draft can be installed on any wood or coal burning stove pipe 5" to 8" in diameter. It is designed to solve draft problems without increasing the height or diameter of the chimney. |
 |
|
|
|
Model AD-1 Advantages
- Eliminates Smoke
- Starts Fires Fast
- Utilizes Fuel Efficiently
- Broadens Ranges of Usable Fuels
- Operates on Standard 115 VAC
|
- Easy to Install (15 Minutes)
- Constructed of Heavy Duty Materials
- Minimal Maintenance
- Rich, Heat Resistant Finish
- Maximum Energy Efficiency
|
|
Click
to
Watch
Specifications
| Dimensions |
Electrical |
| Height |
9 1/2" |
Voltage |
115 VAC |
| Width |
9" |
Motor RPM |
1200-1600 |
| Depth |
7" |
Motor HP |
1/14 (open) |
| Fits |
5-8" Pipes |
Motor Amps |
1 (max.) |
| AIRESHARE™ ROOM-TO-ROOM
& LEVEL-TO-LEVEL TRANSFER FANS |
|
Make hot or cold rooms more
comfortable!
The perfect companion for homes,
condos, hotels & buildings with:
• Split System or Window A/C
•
Space Heaters, Stoves & Fireplaces
• PTAC & Ductless Heating/Cooling
• Electric Baseboard
AireShare™ AS1, AS1P & AS2
Room-to-Room transfer fans pull cool
air from floor level or warm air
from ceiling level and distribute
high or low.
AireShare™ ASLL
Level-to-Level transfer fans pull
warm or cool air from one level and
distribute up or down.
 |
|
|

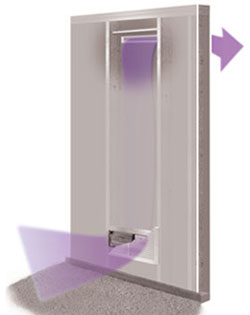

AireShare™ Room-to-Room
Transfer Fans (Models AS1 & AS2)
Move air Room-to-Room. The
blower and diffuser can be mounted either
high or low on the wall. Pull cool air from
floor level or warm air from ceiling level
and distribute the air high or low. Activate it off of a wall
switch or thermostat. Grilles included.
|
Pull air from any level and
distribute high or low.
|
 |
|
|
 |
 |
 |
| Model AS1 |
Model AS1P |
Model AS2 |
|
|
Click to Watch
|
|

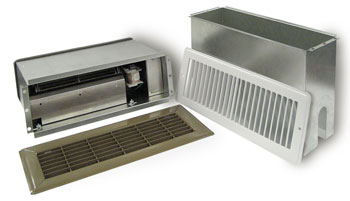

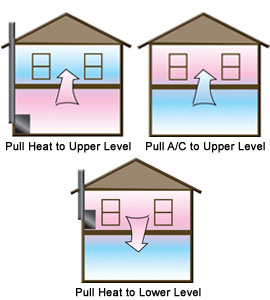

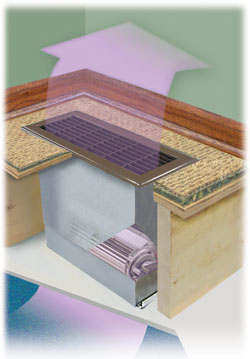

AireShare™ Level-to-Level
Transfer Fan (Model ASLL)
Move air
Level-to-Level. This unit can either blow air up to a higher
level or, when installed in the opposite orientation, down
to a lower level. Move stove
or fireplace heat up or down a level or move cool air from a
basement up to
the main living space. Hard-wired. Can be activated by
switch on unit or wired with a wall switch or thermostat.
Grilles included.
|
|
|
| IN-FORCER™
MODEL FAI4 FRESH AIR INTAKE |
THE
PROBLEM:
Energy-conserving
homebuilding materials and techniques
minimize fresh air intake...a major cause
of illness, discomfort and structural damage. |
THE
SOLUTION:
The
IN-FORCER mechanically draws outside air
indoors to dilute pollutants and replace stale air
without sacrificing energy savings. |
|
|
|
