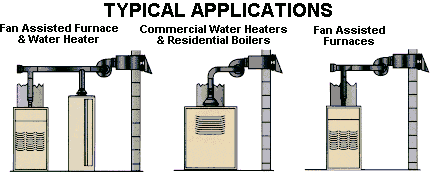

| Side Wall Vent Systems save
time and money and are excellent for electric to gas/oil, renovations,
new construction or for replacing deteriorated chimneys. Side wall venting saves costly
materials and labor on two, three or more story runs. It also increases
living space by cutting out interior chases. Proven safety interlocks
assure proper exhaust, a feature conventional chimneys do not offer in
today's homes and buildings. |
|

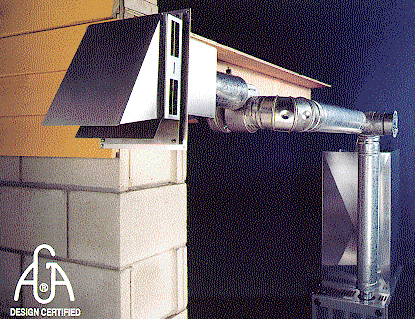

GPAKJ / GPAK1
Series GPAK
gas vent packages combine a HSJ / HS1 Power Venter, VH1-4
Vent Hood and 4" Barometric Draft Control to make it easier for the
wholesaler to inventory and the contractor to order. GPAK Series
Power Venters include a factory prewired Fan Proving Switch and UC1 Control with
pre and post purge to purge the vent system of residual
flue gases after burner cycle has completed. ETL Certification and
package concept make the GPAK a popular Side Wall Venting solution.
Ideal For Replacing Plastic pipe
on 80+ gas furnaces
|
Safety and performance features
time-tested in over a million installations:
| All operating components located
indoors for weather protection and easy servicing. |
| Capacities up to 250,000 BTU/hr. |
| Accommodates vent pipe runs
up to 100 equivalent feet. |
| Regulated, consistent draft
throughout burner cycle. |
| Built-in Fan Proving Switch
interlocks with gas valve. |
| Kit includes everything needed
for installation, except vent pipe. (HS-Series does not come with the
vent hood or Draft Control) |
| Durable, heavy-duty 5052 aluminum
Vent hood. (Gpak Series only) |
AGA design certified for gas
furnaces, boilers, pool heaters, unit heaters and commercial water heaters.
(HS-Series is ETL approved)
|
GPAK-SERIES MODEL SELECTION TABLE
|
|
Maximum Total Vent Pipe Length |
|
Models
|
Vent Pipe
Diameter
|
BTU/hr
Input
|
Atmospheric
A
|
Fan Assisted
B
|
*40,000 ATM
+Column B
C
|
|
GPAKJ
|
4"
|
45,000
75,000
100,000
120,000
|
100'
100'
100'
45'
|
60'
60'
60'
60'
|
60'
60'
N/A
N/A
|
|
GPAK1
|
4"
|
100,000
120,000
150,000
200,000
250,000
|
100'
100'
100'
87'
40'
|
60'
60'
60'
N/A
N/A
|
60'
60'
60'
N/A
N/A
|
NOTES:
- If the appliance
flue outlet is greater than 4", install a tapered reducer after the draft
hood, draft diverter or barometric
draft control, reducing vent pipe
diameter
to 4". All vent pipe from the appliance to the Power Venter may be
4".
- Table is based on
equivalent length of straight vent pipe. 90 degree elbows are equiv.
to 6 feet of straight vent pipe. 45 degree elbows are equivalent
to 3 feet of straight vent pipe.
- Determine maximum
pipe length from type of equipment being vented and GPAK Model. Column
A pipe runs over 30' linear feet should use Type "B" vent. Column
B & C pipe runs over 15 linear feet should use type "B" vent.
- Column C allows
for up to a 40,000 BTU/hr input atmospheric water heater common vented
with a fan assisted appliance from Column B.
- All reducers and
vent pipe are to be supplied by the installer and are available from your
local heating wholesaler.
GPAK MOTOR
SPECIFICATIONS
(Electrical Data)
|
|
VOLTS |
115 |
|
HERTZ |
60 |
|
RPM |
3000 |
|
WATTS |
95 |
|
AMPS |
1.26 |
|
Therm. Prot. |
Yes |
HS
Series
Models:
HSJ, HS1, HS2
| Used
for Side wall venting residential/light commercial natural gas, LP or oil
fired equipment including: Furnaces, boilers, water heaters and unit
heaters. All models feature the new UC1
Universal Control and a diaphragm Fan Proving Switch safety interlock which
will shut down the heating equipment if a venting malfunction occurs. Built-in adjustable damper also allows regulation for maximum combustion
efficiency. UC1 Universal Control features include; adjustable pre
and post-purge settings, LED Status/diagnostic indicators, Fan Prover switch
monitoring.Interlocks with any 24-120 VAC burner control circuit
and also includes "dry" contact actuation option. Easily interlock
multiple appliances with our MAC-Series
multiple appliance controls.
|
|
HSUL Series
(Discontinued
8/05) Replace with HSJ, HS1 or HS2 Models
Designed for atmospheric 24V
controlled gas equipment. Includes a 24/115V switching relay and
a factory set diaphragm Fan Proving Switch. Built-in
adjustable damper also allows regulation for maximum combustion efficiency.
HST Series (Discontinued
7/02) Replace with HSJ, HS1 or HS2 Models
Designed for 24V or 115V controlled
oil or gas equipment. Includes a dual input 24V or 115V, 1-10 minute
post purge Timer/Relay and factory set diaphragm Fan Proving Switch.
Built-in
adjustable damper also allows regulation for maximum combustion efficiency.
HS115 Series (Discontinued
7/02) Replace with HSJ, HS1 or HS2 Models
Designed for 115V controlled
gas equipment. Includes a factory set diaphragm Fan Proving Switch.
Built-in
adjustable damper also allows regulation for maximum combustion efficiency.
HS-Series Residential/Light
Commercial
MODEL
NUMBER
|
VENT
PIPE
DIA.
|
BTU/HR
INPUT
|
MAX. PIPE
LENGTH (FEET)
AT STACK TEMP.
GAS FIRED
300 F
|
MAX. PIPE
LENGTH (FEET)
AT STACK TEMP.
GAS FIRED
400 F
|
MAX. PIPE
LENGTH (FEET)
AT STACK TEMP.
OIL FIRED
500 F
|
CFM AT 70 degrees F.
(Static Pressure)
0" .50" .75" 1.0"
1.4"
|
|
*HSJ
|
4"
|
50,000
75,000
100,000
125,000
|
100'
100'
100'
35'
|
100'
100'
100'
23'
|
100'
100'
---
---
|
110
85 67 10
---
|
|
*HS1
|
4"
6"
|
150,000
200,000
250,000
300,000
150,000
200,000
250,000
300,000
|
100'
87'
40'
4'
100'
100'
100'
30'
|
60'
57'
12'
---
100'
100'
92'
---
|
35'
27'
---
---
100'
100'
---
---
|
158
115 95 12
---
|
|
*HS2
|
6"
8"
|
350,000
400,000
450,000
500,000
550,000
600,000
350,000
400,000
450,000
500,000
550,000
600,000
|
100'
100'
100'
100'
94'
15'
100'
100'
100'
100'
100'
67'
|
100'
100'
100'
72'
---
---
100'
100'
100'
100'
---
---
|
100'
100'
67'
---
---
---
100'
100'
100'
---
---
---
|
286
235 215 196
158
|
*
Oil applications must use the
SideShot®
Vent Systems or HSJ, HS1, HS2 models including UC1 Universal Control with integral Pre and
Post-Purge settings.
|
GPAK/HS-SERIES
POWER VENTER DIMENSIONS |
|
MODEL
|
(H) HEIGHT
|
(W) WIDTH
|
(D) DEPTH
|
INLET/OUTLET
|
|
HSJ
GPAK-JT*
|
7 7/8"
|
10 1/4"
|
7"
|
4"
|
HS1
GPAK-1T*
|
7 7/8"
|
11"
|
7"
|
4"
|
|
HS2
|
9 1/4"
|
11 1/2"
|
8 1/2"
|
6"
|
|
VP-2F/3F MILLIVOLT
WATER HEATER VENTING PACKAGES
|
| |
Models:
VP-2F, VP-3F
CSA Design Certified, used
for Side Wall venting any brand or type of millivolt residential or light
commercial gas water heater. Vents up to 75 equivalent
 feet
and includes: Post-Purge Relay/Timer, Gas Pressure Switch, Thermocouple
Junction Adapter, Linear Limit Spillage Switch, and Vent Hood. Factory
pre-wired electrical box and Control Cables eliminate the need for an
electrician. VP-2F will vent up to 60,000 BTU/hr; VP-3F 60,000 up to
120,000 BTU/hr.
|
|
|
|
|
HS3, 4, 5 SERIES COMMERCIAL POWER VENTERS
|
| |
HS
Series Commercial
Models:
HS3, HS4, HS5
Used
for Side wall venting commercial natural gas or LP fired equipment including:
boilers, water heaters and unit heaters. All models feature the new
UC1
Universal Control and a diaphragm Fan Proving Switch safety interlock
which will shut down heating equipment if a venting malfunction occurs.
UC1 Universal Control features include; adjustable pre and post-purge settings,
LED Status/diagnostic indicators, Fan Prover switch monitoring. Interlocks
with any 24-120 VAC burner control circuit and also includes "dry" contact
actuation option. Easily interlock multiple appliances with our
MAC-Series
multiple appliance controls. Allows
for a significant reduction in vent pipe diameter to save on costly materials
and labor. Built-in adjustable damper also
allows regulation for maximum combustion efficiency.
|
|
MODEL SELECTION TABLE
MODEL
NUMBERS
|
VENT
PIPE
DIA.
|
BTU/HR
INPUT
|
MAXIMUM PIPE LENGTH (FEET)
AT STACK TEMP
100% DILUTION 300 F
GAS FIRED ATMOSPHERIC WITH
DRAFT HOOD OR DRAFT DIVERTER
|
MAXIMUM PIPE LENGTH (FEET)
AT STACK TEMP
25% DILUTION 400 F
GAS FIRED POWER BURNER WITH
BAROMETRIC DRAFT CONTROL
|
|
HS3
115 VAC
1/4 HP
2.7 AMPS
|
8"
10"
|
450,000
500,000
600,000
700,000
450,000
500,000
600,000
700,000
|
100'
100'
100'
7'
100'
100'
100'
21'
|
100'
100'
100'
100'
100'
100'
100'
100'
|
|
HS4
115 VAC
1/3 HP
5.8 AMPS
|
8"
10"
12"
|
700,000
800,000
900,000
1,000,000
1,100,000
1,200,000
700,000
800,000
900,000
1,000,000
1,100,000
1,200,000
700,000
800,000
900,000
1,000,000
1,100,000
1,200,000
|
100'
100'
100'
70'
32'
5'
100'
100'
100'
100'
97'
14'
100'
100'
100'
100'
100'
34'
|
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
|
|
HS5
115/208/230 VAC
1 HP
6.2 AMPS @ 208V*
6.3 AMPS @ 230V*
12.6 AMPS @ 115V
|
10"
12"
14"
|
1,200,000
1,400,000
1,600,000
1,825,000
1,200,000
1,400,000
1,600,000
1,825,000
1,200,000
1,400,000
1,600,000
1,825,000
|
100'
100'
100'
29'
100'
100'
100'
72'
100'
100'
100'
100'
|
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
|
Table is based on straight vent
pipe. 90 degree elbows are equivalent to 10 feet of straight vent
pipe, 45 degree elbows are equivalent to 5 feet of straight vent pipe. Tjernlund Commercial Power
Vent Systems include all necessary actuation, operation and safety
controls. Tjernlund's Fixed &
Variable Speed Specified Systems are also available with virtually
unlimited capacities.
*A SPDT motor relay must be
added for use with the UC1 Universal Control.
COMMERCIAL POWER
VENTER DIMENSIONS
|
MODEL
|
A
|
B
|
C
|
 |
|
HS3
|
8"
|
12 1/2"
|
13 1/4"
|
|
HS4
|
8'
|
14 3/4"
|
15 1/4"
|
|
HS5
|
10"
|
18"
|
16 1/2"
|
| |
VH1-Series
Models:
VH1-3, VH1-4, VH1-6, VH1-8, VH1-10
Specially
designed to terminate Tjernlund
Side Wall Vent Systems. They are also an
approved method of terminating many horizontally vented appliances.
Vent hoods feature heavy duty, corrosion resistant aluminum construction.
Models VH1-3, 4 and 6 also have an additional heat shield for built in
clearances from combustibles. Building exteriors are kept clean while
the aesthetics of the structure remain undisturbed. All mounting
hardware is included.
|
|
DIMENSIONS
|
MODEL
|
A Dia.
|
B
|
C
|
D
|
E
|
F
|
G
|
ROUGH-IN
DIMENSIONS
|
|
|
VH1-3
|
3"
|
6 1/4" SQ
|
7 1/4"
|
10"
|
9"
|
5 1/2"
|
7 3/4"
|
6 3/4" SQ
|
|
VH1-4
|
4"
|
7 1/2" SQ
|
7 1/8"
|
13"
|
8 5/8"
|
7 3/8"
|
11"
|
8" SQ
|
|
VH1-6
|
6"
|
8 1/2" Dia.
|
7 7/8"
|
12"
|
9 1/2"
|
10 1/2"
|
10"
|
9" Dia.
|
DIMENSIONS
|
MODEL
|
A Dia.
|
B
|
C
|
D
|
E
|
ROUGH-IN
DIMENSIONS
|
|
|
VH1-8
|
8"
|
16"
|
7 3/4"
|
18 3/8"
|
20"
|
8 1/2" Dia.
|
|
VH1-10
|
10"
|
16"
|
7 3/4"
|
18 3/8"
|
20"
|
10 1/2" Dia.
|
|
